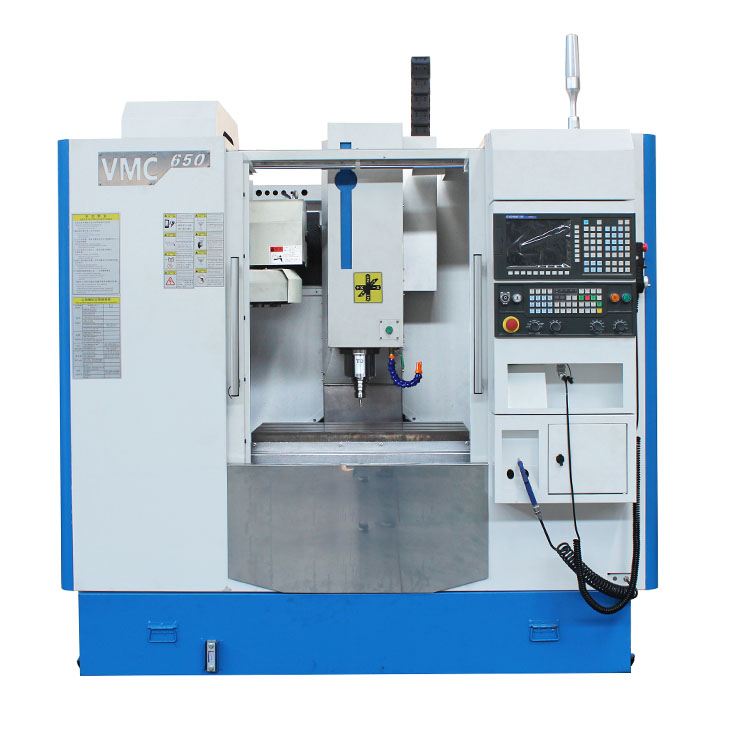

VMC650 Cnc Milling Machine
VMC650 Cnc Milling Machine

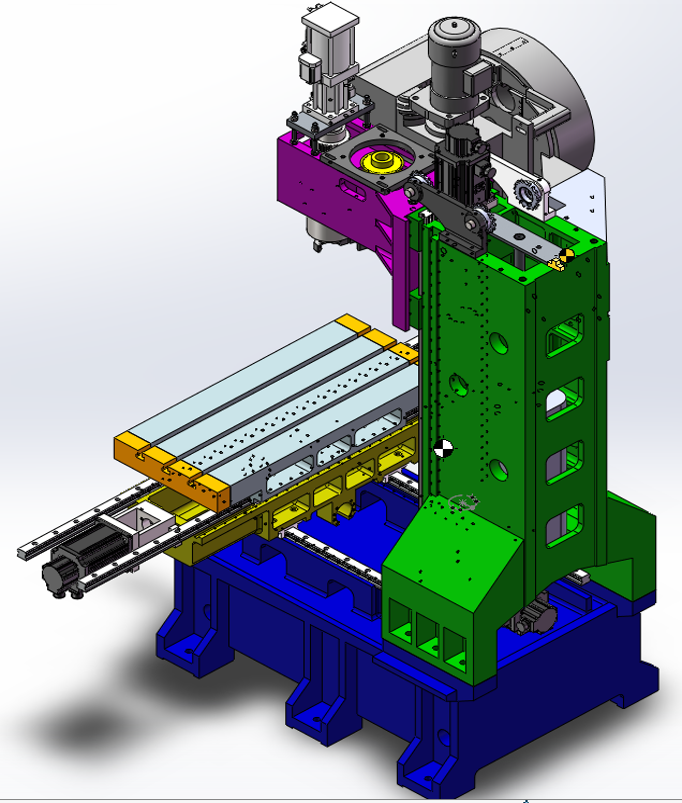

The overall framework is made of high grade casting iron with twice heat treatments and magnetic resonance. The natural aging relieves internal stress to ensure the lasting best rigidity and high precision.
Various options for product configuration
1.CNC system: optional GSK218M / Siemens 808 / Fanuc / Mitsubishi M80 /Syntec 22MA

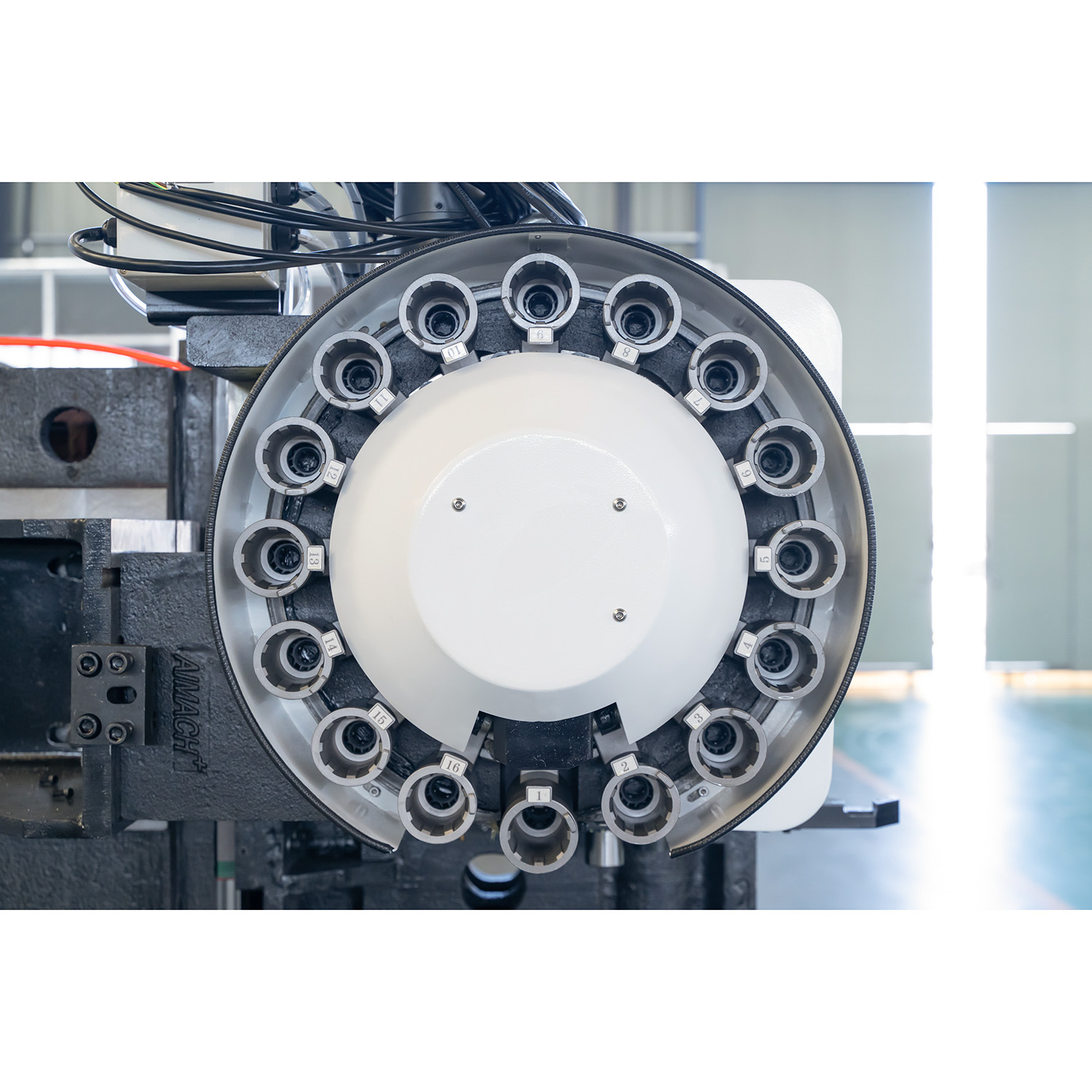

2. Tool magazine: optional funnel-type tool magazine with 12/16/20 tool positions, Arm type tool magazine with 16/24
3. Spindle speed: 8000/10000/15000rpm
4. Turntable: four-axis five-axis
5. Coolant through spindle
6. Spindle oil cooling
7. Chip conveyor
VMC650 Cnc Milling Machine Specification
| ITEM | UNIT | VMC640 | VMC650 | ||

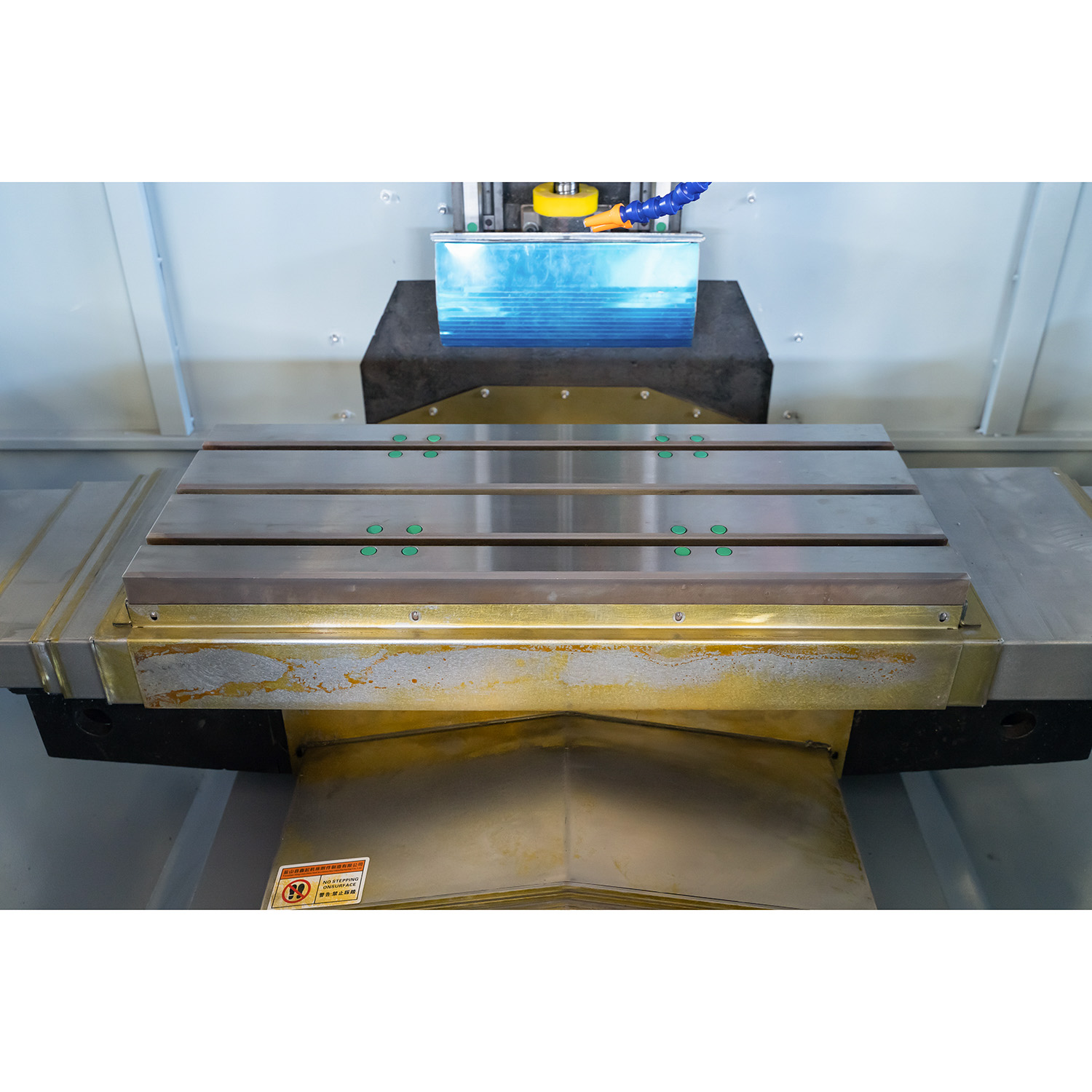

| Table | Size | MM | 800 X 320 | 800 X 400 | |
| Max load | KGS | 400 | 500 | ||
| T-Slot size | MM | 16 X 3 | 16 X 3 | ||
| Working area | X-axis | MM | 600 | 650 | |
| Y-axis | MM | 400 | 400 | ||
| Z-axis | MM | 500 | 500 | ||
| Spindle nose to table | MM | 130-630 | 90-590 | ||
| Spindle center to z axis guide surface | MM | 430 | 470 | ||
| spindle | Spindle taper | BT40-120 | BT40-120 | ||
| Spindle speed | RPM | 8000 | 8000 | ||
| spindle motor power | KW | 5.5 | 5.5 | ||
| Feed | Fast feed | X | M/MIN | 24 | 24 |
| Y | M/MIN | 24 | 24 | ||
| Z | M/MIN | 20 | 20 | ||
| cutting speed | MM/MIN | 1-1000 | 1-1000 | ||
| feed motor power | X | N | 6 | 10 | |
| Y | N | 7.5 | 10 | ||
| Z | N | 15nm | 10 | ||
| Capacity | Types tool changers | Funnel type tool changer/Arm type tool changer ATC | |||
| Capacity of tools | 12/16 | 16/16 | |||
| Tool change time | S | 8/2.5 | 8/2.5 | ||
| Accuracy | Position Accuracy | MM | ±0.006 | ±0.006 | |
| Repeatability | MM | 0.008 | 0.008 | ||
| Size | machine size | MM | 2200 X 1900 X 2500 | 2200X1900X 2500 | |
| Packing dimension | MM | 2400 X 2100 X 2300 | 2400X2100X 2270 | ||
| weight | Kgs | 2800 | 3100 | ||
