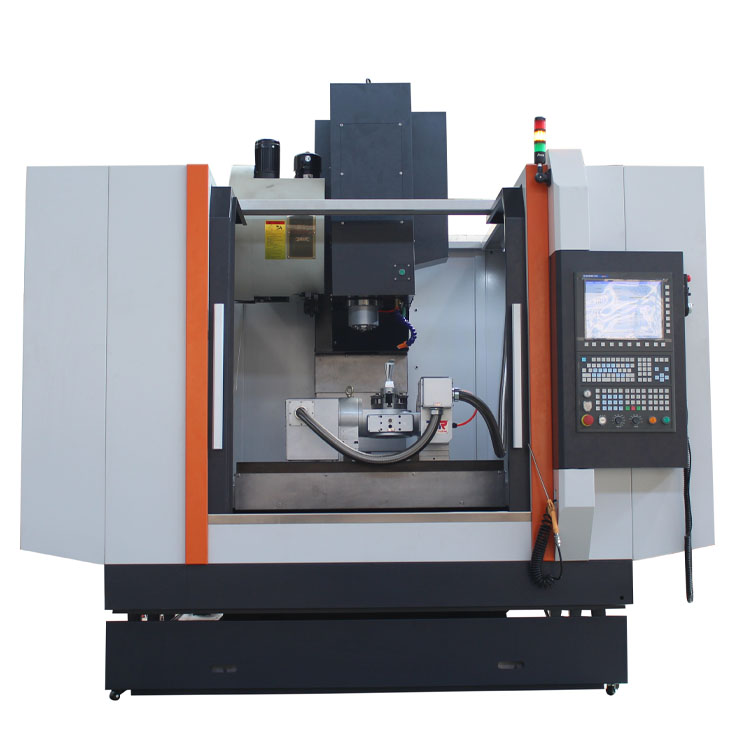

VMC1060 Vertical Cnc Center

vmc1060 vertical cnc center

High speed , precise positioning high linkage accuracy

VMC machining center Mainly used in aerospace,automotive,medical,energy, transportation constuction,agricultuer,mold,3C industry.

Fully automatic lubrication system

Cutting blow device

Rigid tapping function

Vmc1060 Vertical cnc center Mechanical precision comes from rigidity. The structure of the Mechanical strength of rigidity is determined.Well-designed mechanical strucures with high rigidity Long term stability The mechaancal structure is entirely made of advance meehana casting.The unique mechanical structure perfect embodiment of high rigidity and lasting stability.

Vertical cnc center strictly check the prformance guarantee

1.laser inspection

2.positioning accuracy=1.18um

3.based on circle detection o.oo5mm 150mm

VMC1060 Specification

ITEM			UNIT	VMC1060
Table	Size		MM	1200 X600
	Max load		KGS	800
	T-Slot size		MM	18 X 5
Working area	X-axis		MM	1000
	Y-axis		MM	600
	Z-axis		MM	550
	Spindle nose to table		MM	100-650
	Spindle center to z axis guide surface		MM	655
spindle	Spindle taper			BT40-150
	Spindle speed		RPM	8000
	spindle motor power		KW	11
Feed	Fast feed	X	M/MIN	24
		Y	M/MIN	24
		Z	M/MIN	20
	cutting speed		MM/MIN	1-1000
	feed motor power	X	N	18
		Y	N	18
		Z	N	18

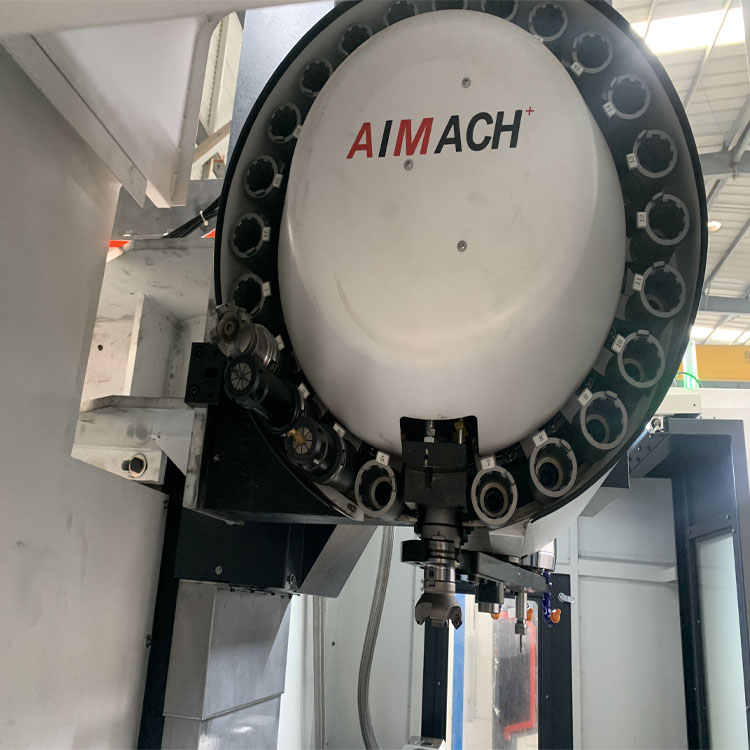

Capacity	Types tool changers		Funnel type tool changer/Arm type tool changer ATC
	Capacity of tools			20/24
	Tool change time		S	8/2.5
Accuracy	Position Accuracy		MM	±0.006
	Repeatability		MM	0.008
Size	machine size		MM
	Packing dimension		MM
weight			Kgs	5800
