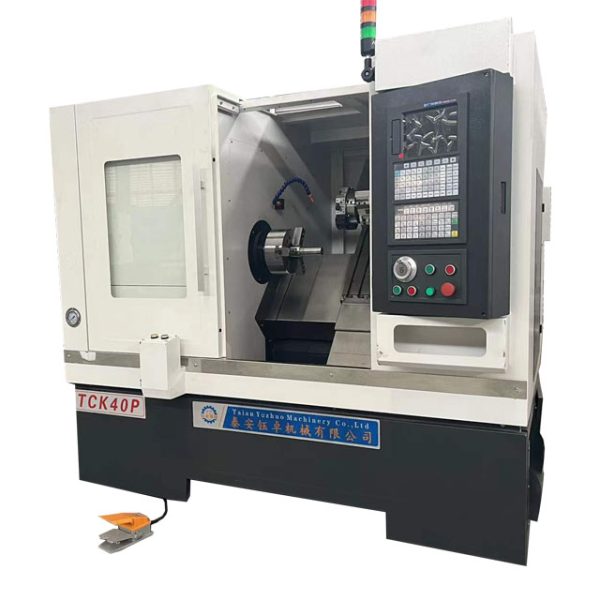

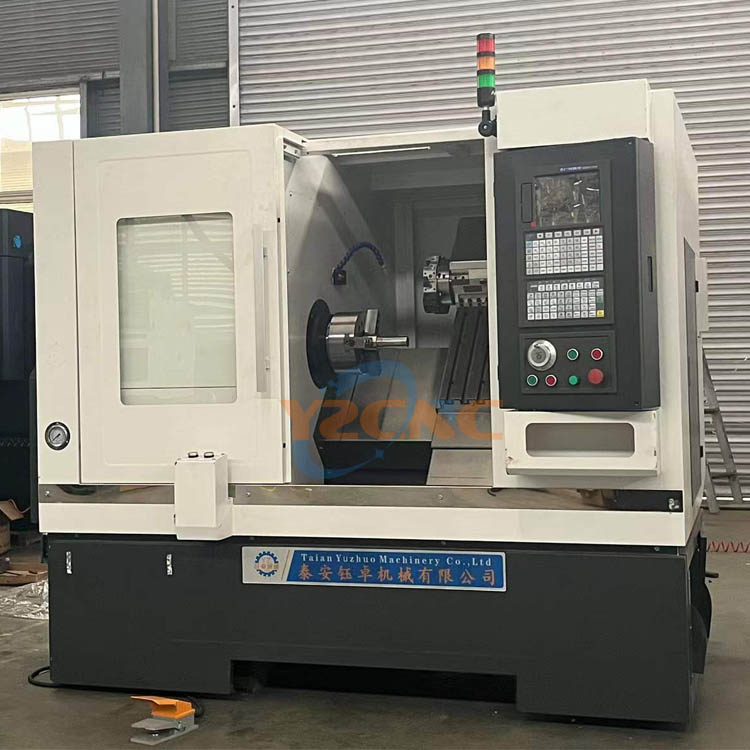

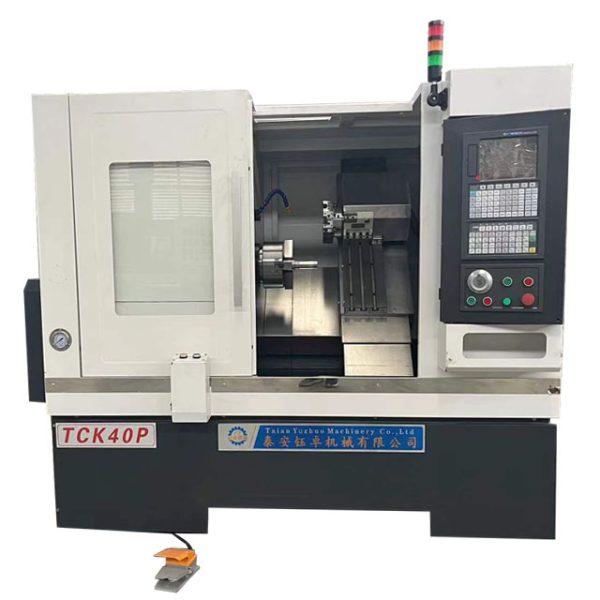

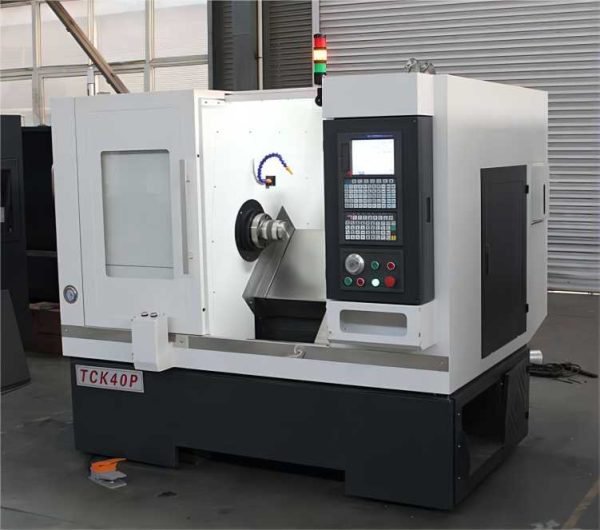

TCK40P Slant Cnc Lathe Machine
1. After-sales services:
Warranty is 18 months; we would offer the parts (quality problem) free of charge during this period.
2.Note: GSK, Servo driven, motor and transformer, Warranty is 3 years.
3.Factory Direct Lathe Price & CE And SGS Quality Assurance
Factory lower price and fast lead-time. CE Certified Quality.
4.3000+ Happy Partners
Our goal is to keep every customer happy with reliable quality, fast turnaround and great services. We want all our new customers to become long-term customers.
4.Delivery time:10-20 days
5.SEAWORTHY PACKING
TCK40P Slant Cnc Lathe Machine is a popular type of CNC machine tool that feature a slanted bed for supporting the workpiece and cutting tool. This design offers several advantages and characteristics that make it ideal for a variety of machining applications.
Standard configuration
- Cnc controller :Gsk
- Hydraulic collet(Contains Hydraulic Station)
- X/Z Servo Motor
- Spindle Motor 4kw A2-5
- Tool rest
- Centralized automatic lubrication system
- Working lamp
- Toolbox
Optional
- Cnc controller:GSK980TDi/Siemens808D/Syntec6ta/Fanuc
- Hyraulic Chuck 6/8inch
- 6-station Turret/8-station Turret
- Auto bar feeder
- Power Headdriven tool ER25/Vehicle driven tool
How to ensure the quality of Slant Cnc Lathe Machine
Quality Assurance: We strictly implement CE quality standards and have received CE certification. This means our production lines feature advanced technologies that give manufacturing precision and accuracy. With sophisticated measuring and testing equipment in house, we check all incoming material and parts to meet your specifications. That’s why we are outstanding among the rapid prototyping companies in China. Learn more about our quality control system.
| ITM | UNIT | TCK40P | |
| Machining Range | Max. swing dia. over bed | mm | 400 |
| Max. swing dia. over slide | mm | 150 | |
| Max. cutting dia. Of disc type parts | mm | 300 | |
| Max. cutting dia. Of axle type parts | mm | 130 | |
| X/Z Axis | X axis travel | mm | 720 |
| Z axis travel | mm | 400 | |
| Max. process length | Mm | 320 | |
| X Z Fast feed | mm/min | 12000 | |
| Spindle | spindle bore | mm | 48/60 |
| through hole bar diameter | Mm | 42/50 | |
| spindle nose type | A2-5/A2-6 | ||
| spindle speed | rpm | 4000 | |
| main motor power | kw | 4 | |
| accuracy | positioning accuracy | mm | 0.012 |
| XZ repeatability | mm | 0.003 | |
| Diameter uniformity | mm | 0.03/300 | |
| Flatness | mm | 0.03/200 | |
| tool post type | Gang tool/8 hydraulic turret | ||
| tailstock | Without | ||
| Dia. of tailstock sleeve | Mm | Without | |
| Tailstock sleeve taper | |||
| Chuck | Hydraulic collet/6inch hydraulic chuck | ||
| bed inclination | 45 degrees | ||
| size | |||
| weight | |||
Quality Assurance
With more than 20 years of manufacturing and processing experience, we already have a comprehensive production and processing process and quality control system, and carry out strict inspections on materials, processing, finished products, shipments and other links to ensure product quality and on-time delivery.
The company has passed a number of quality management system certifications, and has been committed to providing customers with efficient and high-quality products and services.
