Slotting Machine

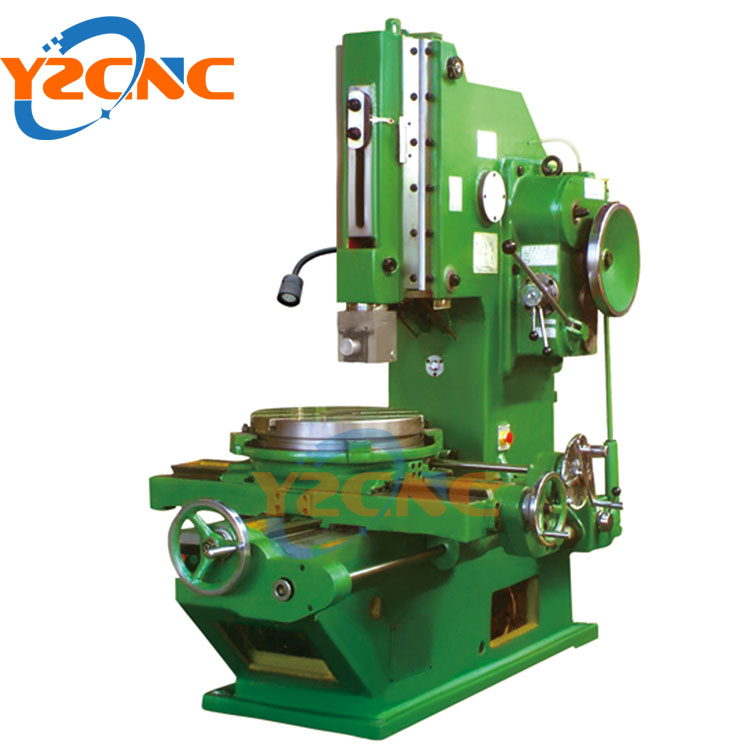

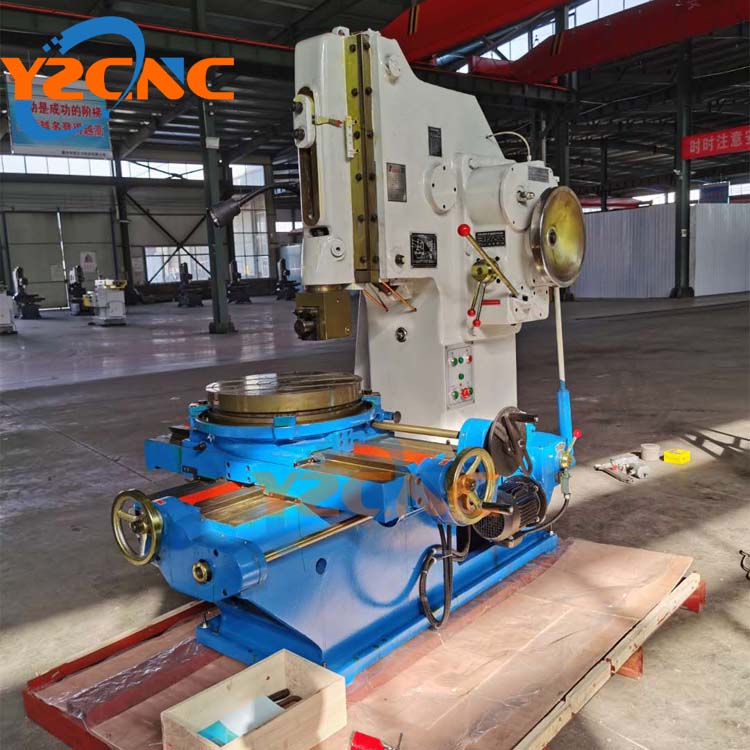

B5020 And B5032 slotting machine Mainly used in the processing of auto parts, aviation plug inner keyway, and splineA metal cutting machine tool used to machine groove-like features. During processing, the workpiece on the worktable moves longitudinally, horizontally, or rotationally, and the inserting knife reciprocates up and down to cut the workpiece.
| Model | Ram can be tilted | Workbench fast forward | Variable speed |
| B5020/B5032 | × | × | √ |
| B5020/B5032 | × | √ | √ |
| B5020A/B5032A | √ | √ | √ |
B5020 And B5032 Slotting Machine Specification
| Specification | B5020 | B5032 |
| Max.cutting length | 200mm | 320mm |
| Interpolated inner hole | 360mm | 360mm |
| Max.weight of workpiece | 400kg | 500kg |
| Max.cutting force | 550N | 750N |
| number of reciprocations per minute of the ram | 32.50.80.125 | 20.32.50.80 |
| Ram vertical adjustment | 230mm | 315mm |
| Max.size of plug(width height) | 25×40mm | 25×40mm |

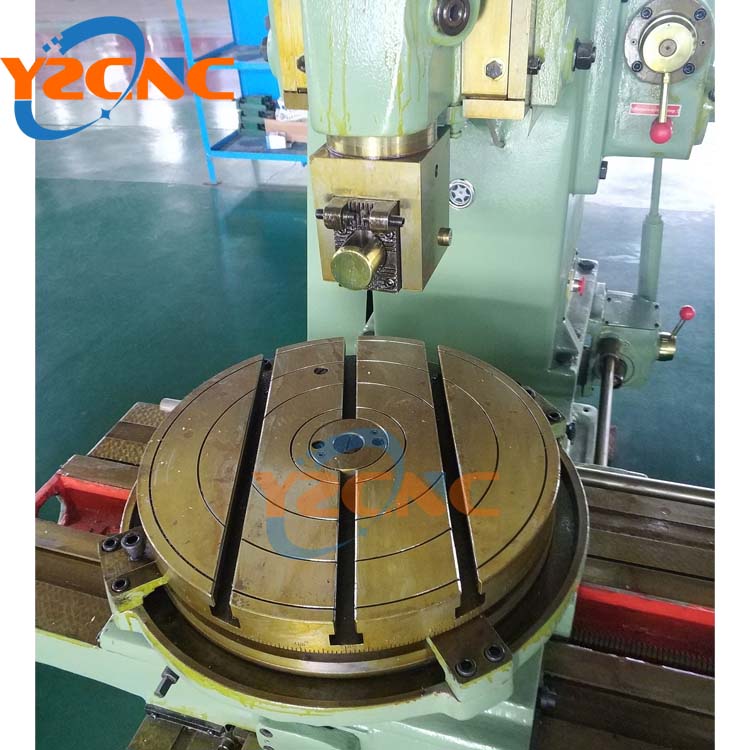

| Table diameter | 500mm | 630mm |
| Distance between support surface of cutter head and front wall of the bed | 485mm | 600mm |
| Worktable surface to the lower end of carriage | 320mm | 490mm |
| Worktable Max.longitudinal movement distance | 400(450 )mm | 480(620)mm |
| Worktable Max.lateral movement distance | 450(500)mm | 480(560)mm |
| Worktable vertical and horizontal maneuvering feed range | 0.08-1.21mm | 0.08-1.21mm |
| Worktable rotary maneuvering feed range | 0.052-0.783deg | 0.052-0.783deg |
| Motor power | 3kw | 4kw |
| Motor speed | 1430rpm | 930rpm |
| Machine size | 1916×1305×1995 | 2180×1505×2285 |
| Machine weight | 2200kgs | 3500kgs |
