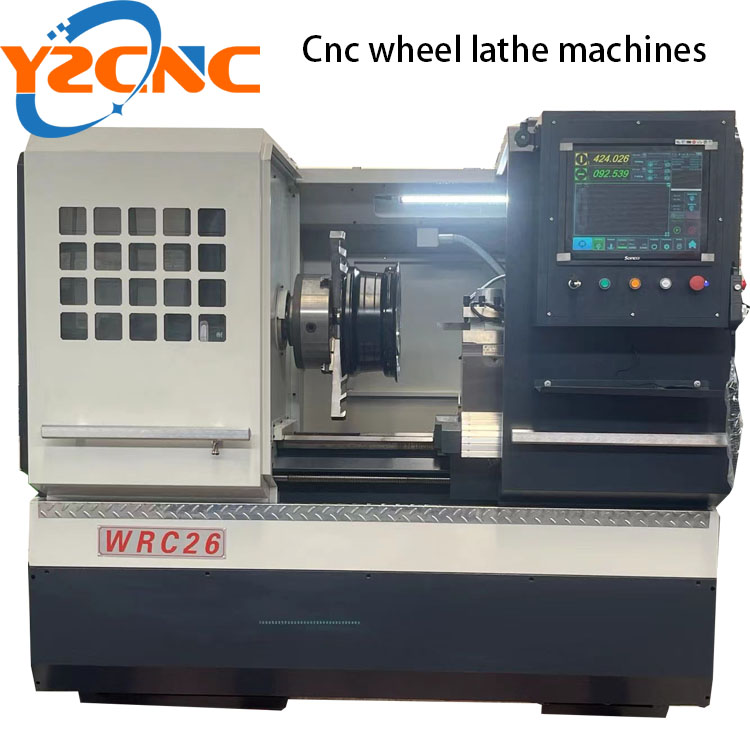

Cnc Wheel Lathe Machines
Cnc Wheel Lathe Machines configuration
Bed: Horizontal Lathe or Vertical Lathe
Controller: Syntec or YZCNC（Automatic programming，touch screen opetation 17 inch screen lcd display）
Chuck: 3/4/6 jaw Chuck
Free Optimization Software
Water cooling/air cooling/high pressure spray cooling
Single 220v 3 phase 220v 3 phase 380V
4- Station Turret tools
YZCNC is cnc wheel lathe machines leading manufacturer in china， With more than 25 years of alloy rim repair equipment experience.
and a leading manufacturer of hi-tech CNC wheel lathe machines, diamond cutting CNC wheel repair lathes, alloy rim repair equipment, wheel straightening tools, wheel polishing and powder coating machines.We have a wide range of wheel repair equipment
Max. alloy wheel repair 20inch/22inch/26inch/30inch/32inch.
Wheel Lathe CNC Machines
CNC Diamond Cutting Lathe
Wheel Straightening Tools
Alloy Rim Repair Equipment
Alloy Rim Polishing Machines
Advanced CNC Machine Software
Wheel Repair Products Feature Hi-Tech CNC Machine Software and Patented Alloy Rim Repair Technology.
1. Precision Diamond Cutting
2. Wheel Straightening
3. Wheel Polishing
4. Advanced CNC Software
5. Alloy Rim Repairs
6. Powder Coating
CNC Wheel Lathe Machines & Alloy Rim Repair Equipment
| ITM | UNIT | WRC28H | WRC32VM | WRC32H | |
| Machine processing capacity max | Max. swing over bed | Mm | 770 | 870 | 870 |
| X/Z axis Travel | mm | 390/750 | 450/550 | 450/750 | |
| X/Z axis feed | Mm/min | 4000/8000 | 5000/10000 | 5000/10000 | |
| Wheel work range holding | holding diameter | inc | 28 | 32 | 32 |
| Wheel height range | mm | 80-500 | 80-500 | 80-500 | |
| Chuck | Chuck size | mm | 320 | 320 | 320 |
| Number of chuck jaws | 3/4/6 | 3/4/6 | 3/4/6 | ||
| Spindle speed lathe | Lathe speed | Rpm/min | 100-1500 | 100-1500 | 100-1500 |
| Cut Wheel Work Speed | 300-800 | 300-800 | 300-800 | ||

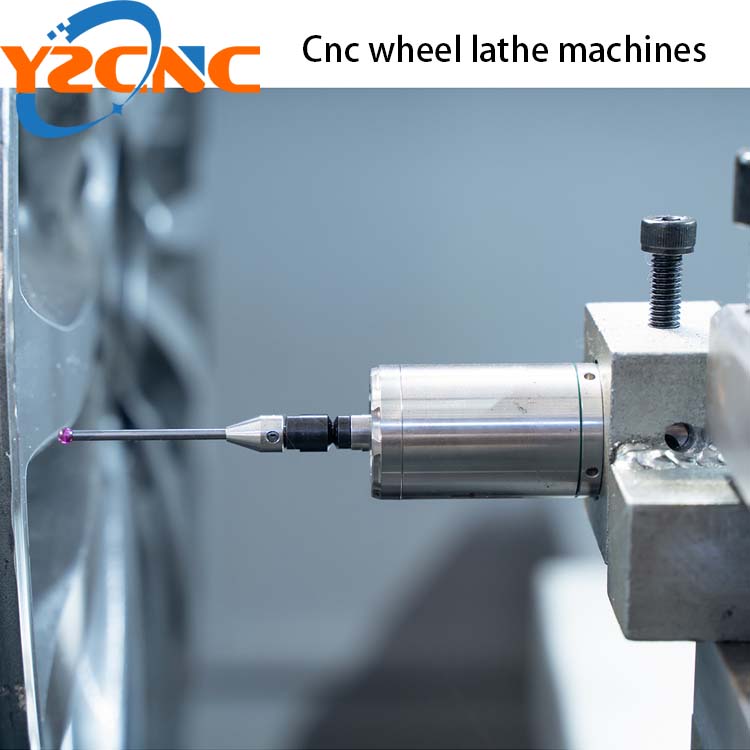

| Detection tools | TP300探针 Probe | ||||
| Guide rail form | Hard rail | Linear guideway | Linear guideway | ||

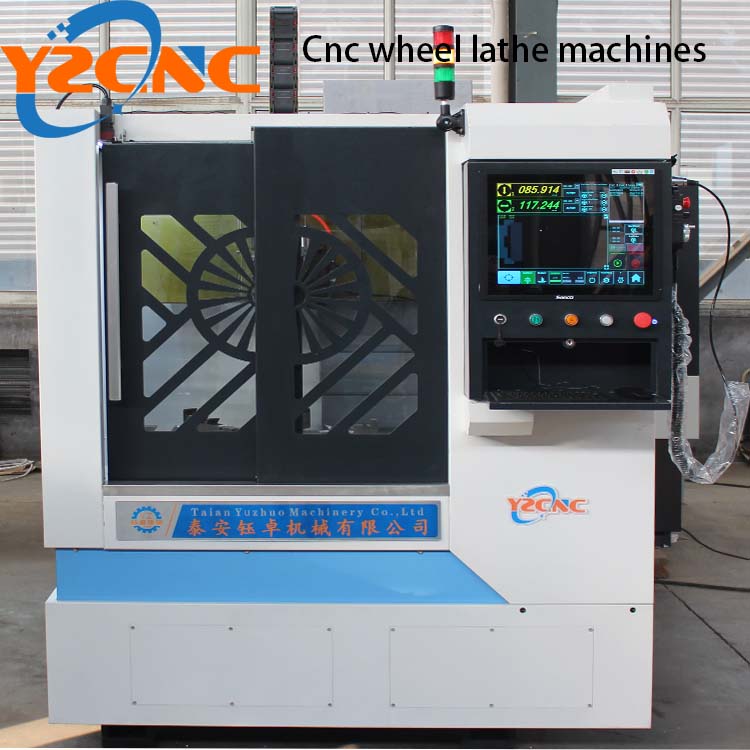

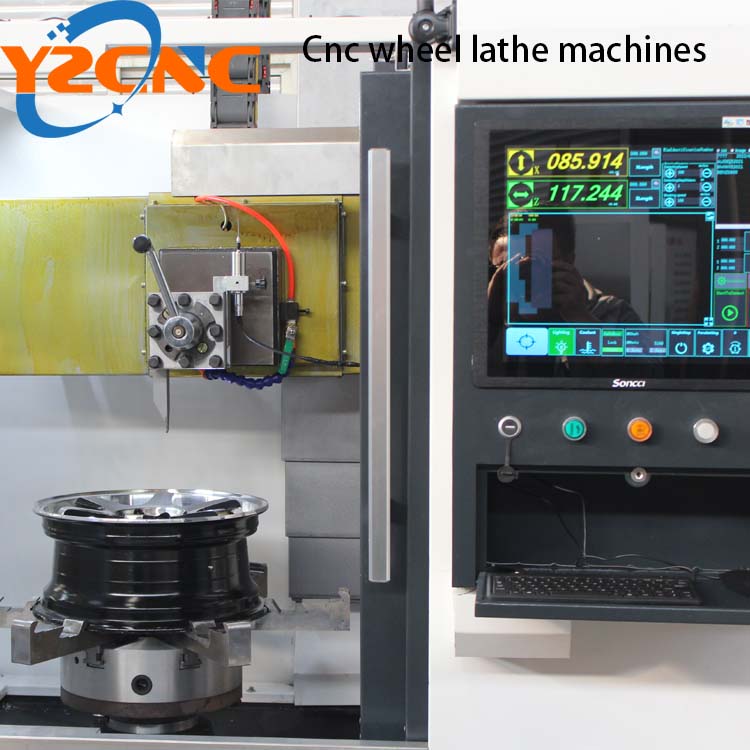

| Lathe structure | Horizontal | vertical | Horizontal | ||
| system | 6Ta-E / YZCNC（Automatic programming，touch screen operation 17寸screen LCD display） | ||||
| tool carrier | Number | 4 | 4 | 4 | |
| accuracy | Positioning accuracy | Mm | 0.01 | 0.01 | 0.01 |
| Repeatability Positioning accuracy | mm | 0.005 | 0.005 | 0.005 | |
| Tool carrier Repeatability Positioning accuracy | mm | ±0.07 | ±0.07 | ±0.07 | |
| Motor power | Main motor | kw | 5.5 | 5.5 | 5.5 |
| X Z Feed Torgue | N/M | 6/10 | 6/10 | 6/10 | |
| Cooling | Water cooling/air cooling/high-pressure spray cooling | ||||
| Voltage | Single 220v 3 phase 220v 3 phase 380V | ||||
| Machine size | mm | 2100/1500/1800 | 1700/1500/2250 | 2500/1850/1800 | |
| Machine weight | T | 2.8t | 1.6t | 1.8t | |
