CK6140 Horizontal cnc lathe machine
CK6136A and CK6140A Horizontal cnc lathe machine quality
Stick to the best quality and never compromise, check the inspection standard with the strictest quality
1.precision testing of machining parts
2.dealy brand laser positioning test
3.Main shaft and spindle power balance correction
4.Measurement of roundness verticality of club instrument
CK6136 and CK6140 Horizontal cnc lathe machine All structures are designed, developed and manufactured in accordance with the requirements of international standards. The whole machine has good precision and stability, strong rigidity, small thermal deformation of the independent spindle, good precision retention, and excellent maintenance-free characteristics, suitable for heavy cutting. The machine concept has reached the international advanced level. Advanced structural design and perfect supply measures make the machine tool have high reliability and long-term high precision retention.
CK6136 /CK6140 Main Product advantages
1. Fully enclosed protection design, good waterproof. Compact layout, saving space,,
2. Perfect match of automatic transmission and independent spindle
3. Stable precision, high torque, high rigidity, good vibration resistance and high processing efficiency.
4. Modular design, independent maintenance-free spindle structure has the characteristics of fast start and stop, stable, efficient and high-precision processing, etc.
5. There are two types of spindles: independent spindle and gear box. The independent spindle has the characteristics of high speed and high precision. Gearbox with high torque, heavy cutting, etc.
6. High rigidity tailstock design

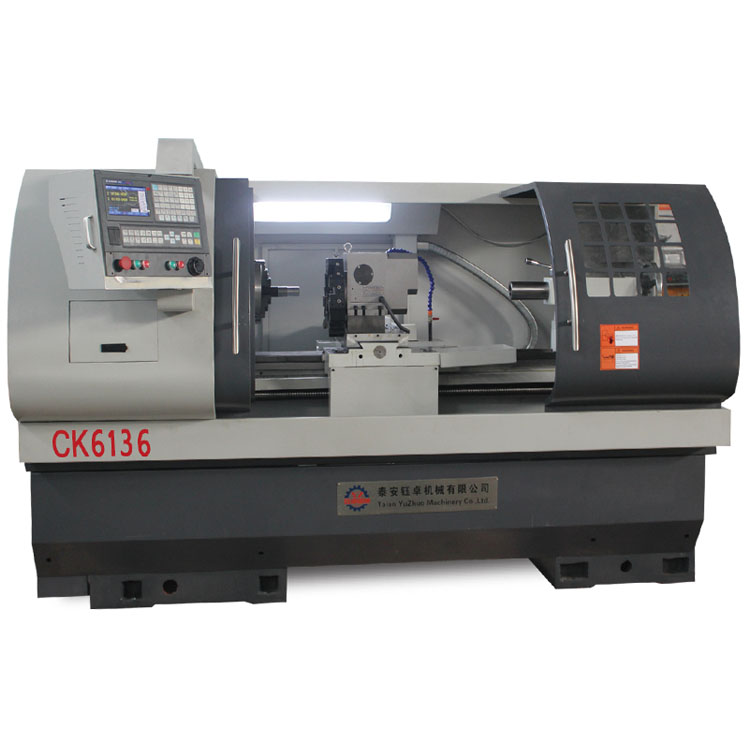

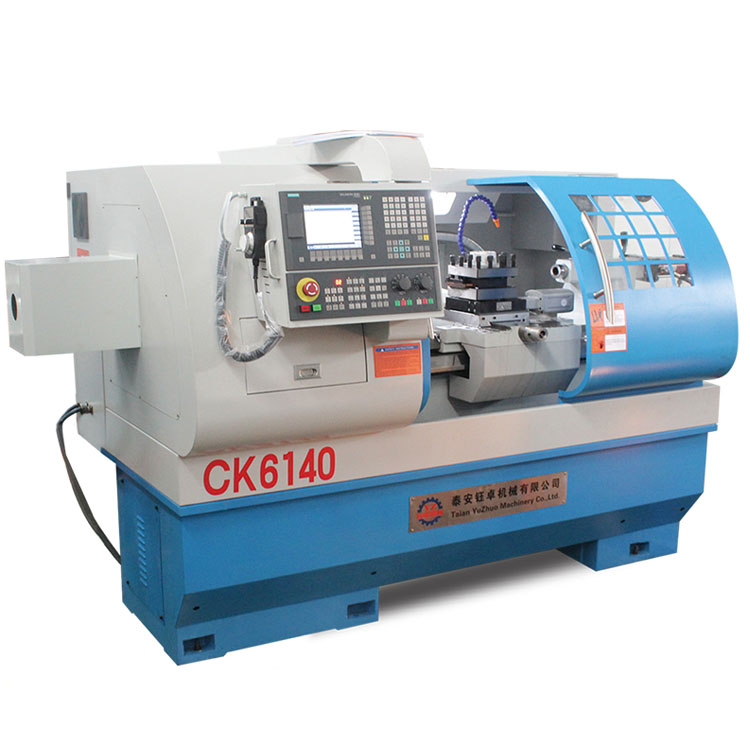

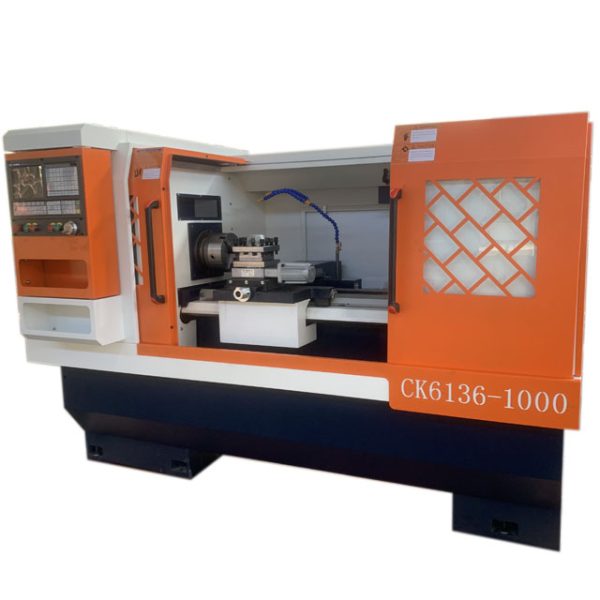

CK6136 /CK6140 Horizontal cnc lathe machine
1.Can be configured Manual chuck Hydraulic chuck Hydraulic tailstock Pneumatic chuck Pneumatic tailstock

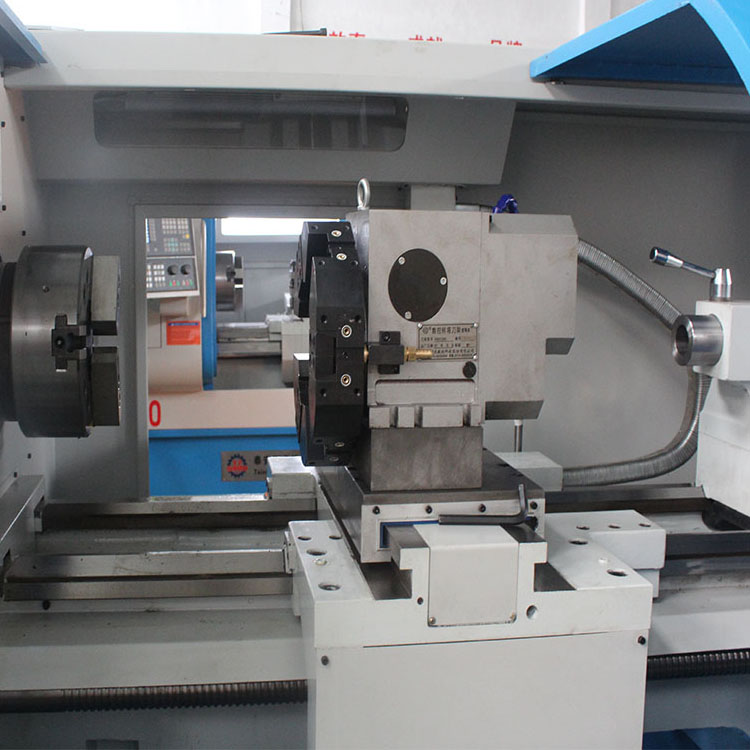

2. 4/6/8 station turrets
3.GSK Siemens / Fanuc / Syntec/ KND
4.Square cutting power head .
5.Equipped with automatic bar feeder (both oil bath type and servo feeder)
CK6136 /CK6140 cnc lathe Specification
| ITM | unit | CK6136A/CK6140A | |
| Machining Range | Max. Swing over bed | MM | 360/400 |
| Max. Swing over cross slide | MM | 220 | |
| Max. work length | Mm | 600/850 | |
| Max. Z axis Travel | MM | 750/1000 | |
| Max. X axis Travel | MM | 250 | |
| Spindle | Spindle bore | MM | 60 |
| Spindle nose | A2-6 | ||
| Spindle speed range | RPM | 100-2500 | |
| Chuck | MM | 200mm manual 3 jaws 200mm | |
| Lathe bed | Bed width | MM | 330 |
| Feed | x/z fast feed | Mm/min | 6000/8000 |
| x/z cutting travel speed | Mm/min | 1-6000 | |
| Tool Turret | Number of tool turret | 4/6/8 turret | |
| Tool shank type | MM | 20*20 | |
| Working accuracy | Positioning accuracy | MM | X≤0.010 Z ≤0.015 |
| Repeatability Positioning accuracy | MM | X≤0.0075 Z ≤0.010 | |
| Min. unit set | MM | 0.001 | |
| roundness | MM | ≤0.007 | |
| Diameter uniformity | MM | ≤0.03 （length 300） | |
| Flatness | MM | ≤0.02 （Diameter 300） | |
| Surface Roughness (Steel) | Ra1.6um | ||
| Tailstock | Dia. of tailstock sleeve | MM | 60 |
| Tailstock sleeve taper | MT4 | ||
| Max. Tailstock sleeve travel | MM | 140 | |
| Motor | Spindle drive motor power | KW | 5.5 |
| Coolant pump power | W | 120 | |
| size | L W H | MM | 2150X1400X1600 |
| weight | Kgs | 1.7T | |
