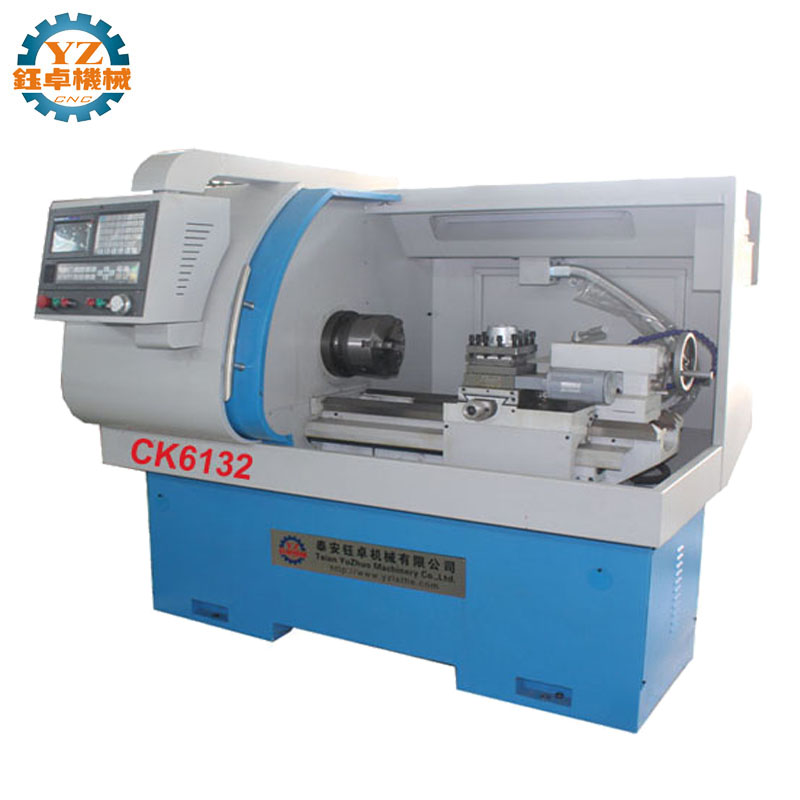

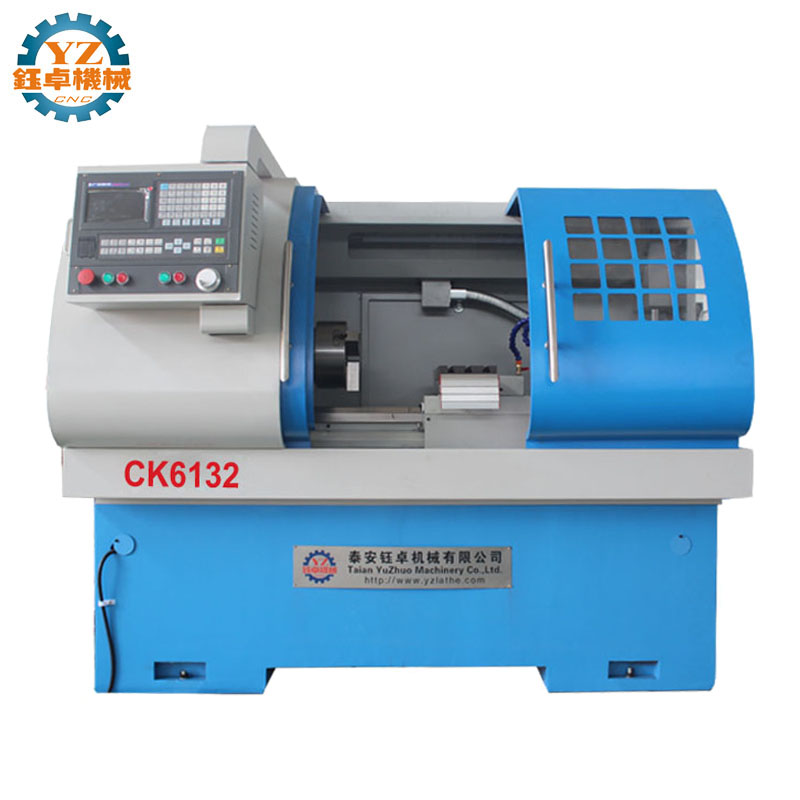

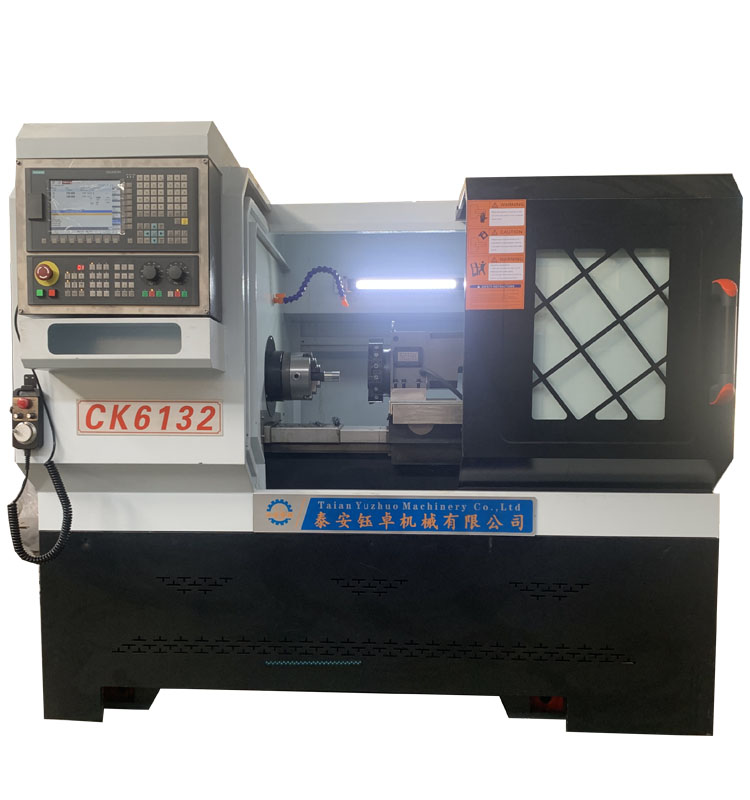

CK6132A Mini cnc lathe machine
CK6132 mini cnc lathe machine have more than 25 years of production experience，quality is stable and the precision is high.
High cost performance, suitable for precision parts processing
CK6132 series CNC horizontal Mini cnc lathe Machine has the characteristics of high precision, high power, high rigidity, etc., and its main components and structures have been optimized.
GSK CNC system and full-digital AC servo system, X and Z axes adopt semi-closed-loop control, ball screw pair adopts C3 precision ball screw, electrical components are imported or domestic well-known brands, in line with CE or domestic 3C certification.
Before leaving the factory, the machine tool is inspected in strict accordance with the inspection procedures. Each machine tool uses a laser interferometer to detect the positioning accuracy and repeat positioning accuracy of the X and Z axes to ensure the stability and reliability of the machine tool.
CK6132 Standard configuration
1.cnc controller :GSK928
2.Manual Chuck 3-jaw 200mm

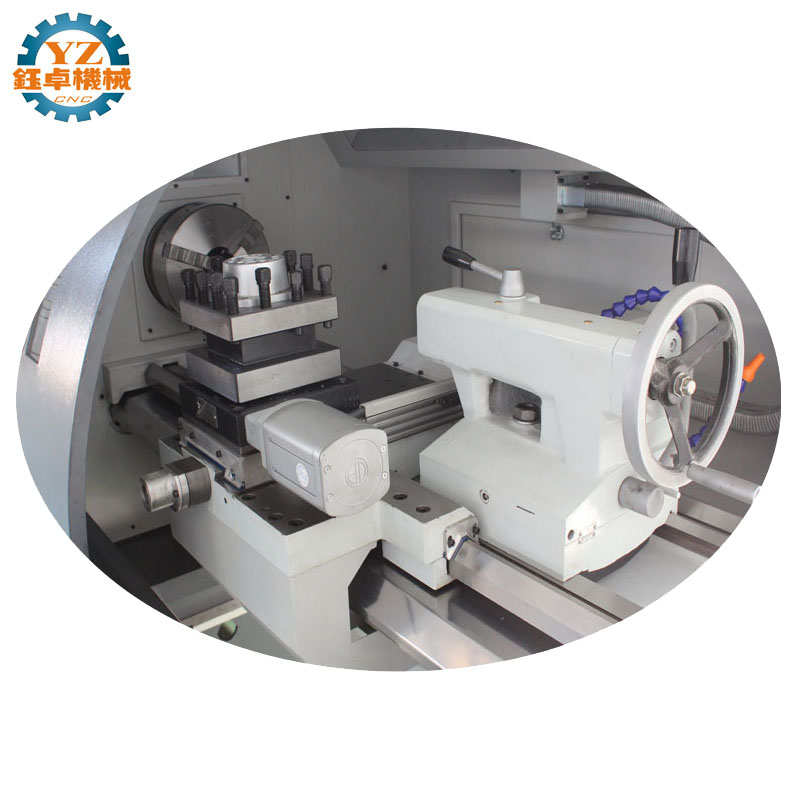

3.Manual Chuck tailstock

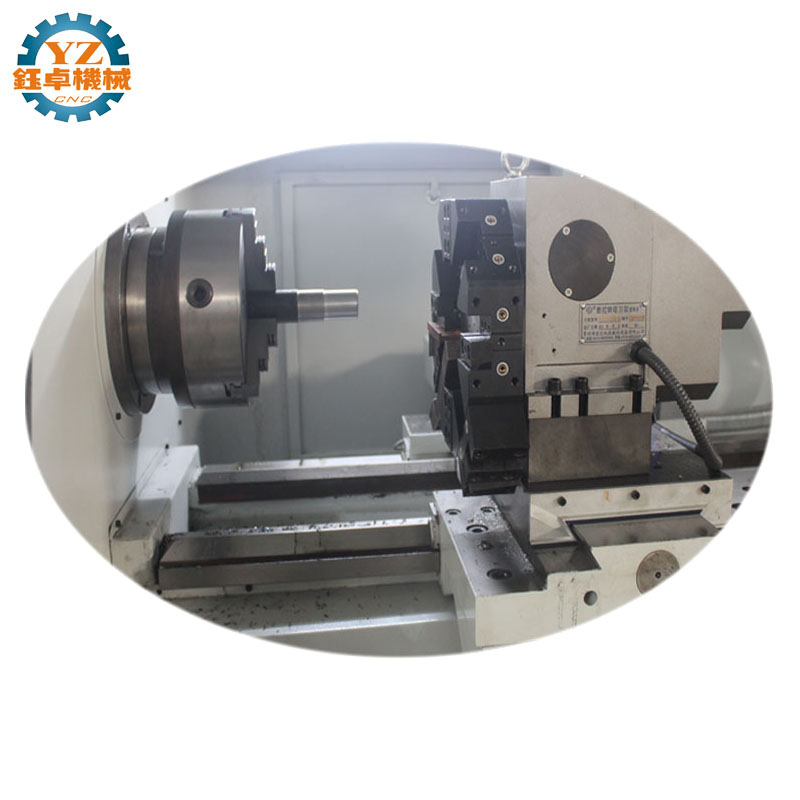

4.Vertical Four-station electrical turret
5.Automatic Lubrication system
6.Cooling system
CK6132 Optional Configure
1.KND /Fanuc/Siemens…..etc
2.Hydrualic chuck,pneumatic chuck ,pneumatic collet.
3.Hydraulic tailstock,pneumatic tailstock
4.Automatic bar feeder

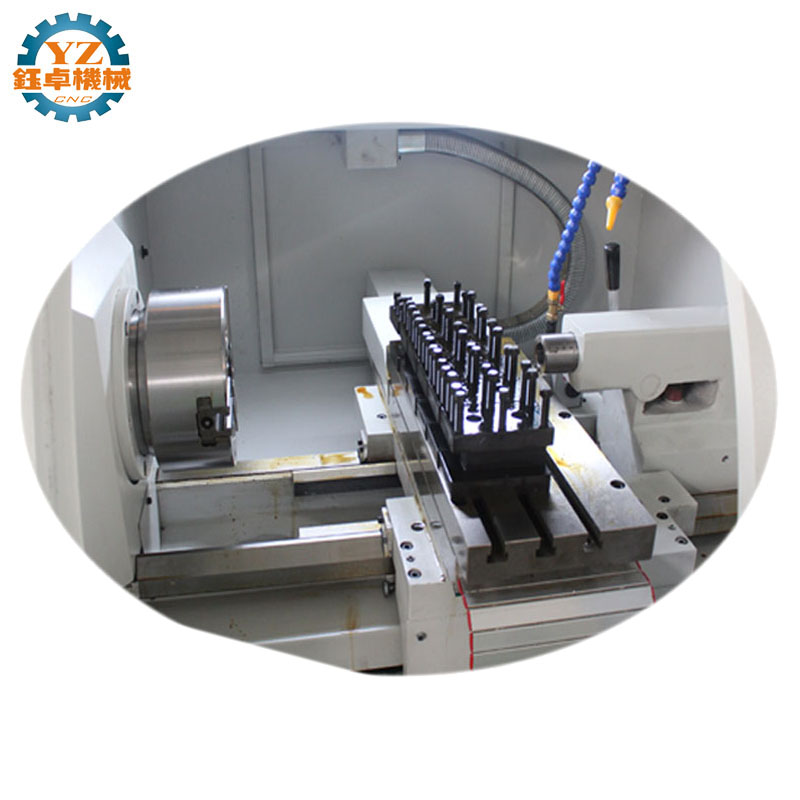

5.Horizontal six-station turret, Gang type tool post
CK6132 mini cnc lathe Specification
| ITM | unit | CK6132 | ||
| Machining Range | Max. Swing over bed | MM | 350 | |
| Max. Swing over cross slide | MM | 180 | ||
| Max. work length | Mm | 400 | ||
| Max. Z axis Travel | MM | 450 | ||
| Max. X axis Travel | MM | 280 Gang tool | ||
| Spindle | Spindle bore | MM | 48 | |
| Spindle nose | A2-5 | |||
| Spindle speed range | RPM | 100-2500 | ||
| Spindle type | Independent spindle | |||
| Feed | x/z fast feed | Mm/ min | 6000/8000 | |
| x/z cutting travel speed | Mm/ min | 1-6000 | ||
| Tool Turret | Number of tool turret | gang type tool post
| ||
| Tool shank type | MM | 16*16/20*20 | ||
| Working accuracy | Positioning accuracy | MM | X≤0.010 Z ≤0.015 | |
| Repeatability Positioning accuracy | MM | X≤0.0075 Z ≤0.010 | ||
| Min. unit set | MM | 0.001 | ||
| roundness | MM | ≤0.007 | ||
| Diameter uniformity | MM | ≤0.03 （length 300） | ||
| Flatness | MM | ≤0.02 （Diameter 300） | ||
| Surface Roughness (Steel) | Ra1.6um | |||
| Tailstock | Dia. of tailstock sleeve | MM | 60 | |
| Tailstock sleeve taper | MT4 | |||
| Max. Tailstock sleeve travel | MM | 100 | ||
| Motor | Spindle drive motor power | KW | 4 | |
| Coolant pump power | W | 90 | ||
| size | L W H | MM | 2050X1500X1650 | |
| weight | 1.2T | |||
